The Mechanical Docking Enclosure

Structural Integration & Geometric Optimization

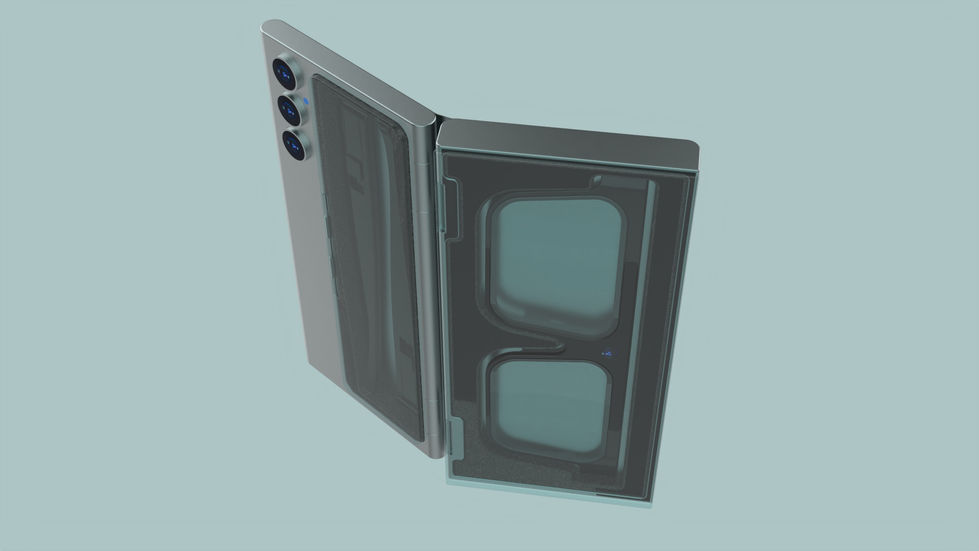

Integrating a wearable spatial computing device into a primary mobile communication device requires exact spatial optimization to maintain a pocketable form factor. The architecture utilizes the negative space created within the folding radius of the smartphone’s chassis to house the AR smart glasses. By engineering custom precision-milled cavities within the inner bezels and the central hinge mechanism, the folded smart glasses nest completely flush within the interior architecture of the phone. This nesting configuration allows the smartphone to maintain an overall thickness comparable to traditional flagship foldable devices while safely housing a secondary hardware unit.

Hardened Exoskeleton & Protective Housing

Current standalone AR glasses require bulky, rigid carrying cases to prevent lens scratching and frame damage during transit. This architecture eliminates that requirement by transforming the foldable smartphone into a hardened exoskeleton. When the smartphone is folded closed, it forms a structural vault around the smart glasses, completely encapsulating them.

Impact Distribution: External kinetic force applied to the closed smartphone is distributed across the rigid outer chassis and shock-absorbing internal gaskets, transferring energy away from the delicate AR lenses and optical waveguides.

Debris & Ingress Shielding: The internal docking cavity features dust-resistant sealing elements to prevent particulate ingress, ensuring the AR lenses remain clean and unobstructed while stowed in a pocket or bag.

Deployment and Retrieval Mechanism
To achieve true "Zero-Friction Portability," the transition between docked and deployed states must be seamless, requiring minimal cognitive or physical effort from the user.

Guided Magnetic Alignment: The internal docking bay utilizes a strategically polarized neodymium magnetic array. When the user places the glasses near the housing cavity, the magnets autonomously guide the frames into precise alignment with the charging terminals, eliminating the need to force or blindly snap the device into place.

Secure Mechanical Retention: Once seated, a micro-mechanical locking mechanism—integrated directly into the foldable smartphone's hinge structure—secures the glasses.

Frictionless Extraction: To deploy the glasses, the user simply unfolds the smartphone and engages a tactile release switch, which disengages the mechanical lock and gently elevates the frames for immediate, single-handed extraction.
